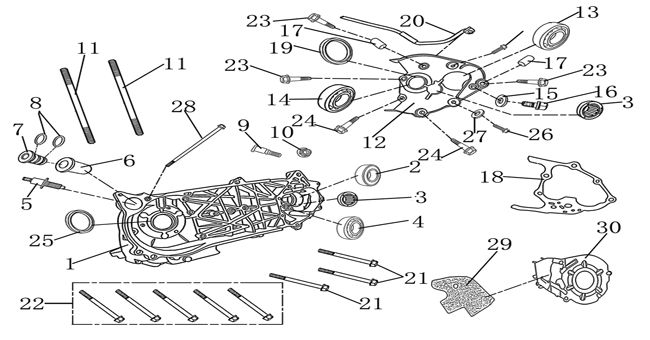

ENGINE PARTS --> 4 STROKE 172MM --> 7.LEFT CRANKCASE COMP

No. Part No. Description in Chinese Description in English Q'ty U/Price
1 250T-A-07001 左曲轴箱体 Left Crankcase 1 $50.55
2 250T-A-07002 深沟球轴承6205 Bearing,6205 1 $4.20
3 250T-A-07003 滚针轴承NK 14/16 Bearing NK 14/16 2 $0.90
4 250T-A-07004 深沟球轴承6301 Bearing 6301 1 $2.40
5 250T-A-07005 后减震固定轴 Fixing Shaft,Rear Absorber 1 $0.75
6 250T-A-07006 吊架外衬套 Outer Bush,Engine Mount 1 $1.20
7 250T-A-07007 吊架内衬套 Inner Bush,Engine Mount 1 $1.20
8 250T-A-07008 O型圈 O Ring 2 $0.06
9 250T-A-07009 刹车蹄块固定销 Fixing Pin, Brake Shoe 1 $0.30
10 250T-A-07010 法兰锁紧螺母M8 Flange Lock Nut, M8 1 $0.05
11 250T-A-07011 缸体双头螺柱M8X177 Bolt, M8X177 2 $0.38
12 250T-A-07012 齿轮室盖 Gear Box Cover 1 $9.00
13 250T-A-07013 深沟球轴承6304 Bearing, 6304 1 $3.98
14 250T-A-07014 深沟球轴承62/22 Bearing, 62/22 1 $5.25
15 250T-A-07015 铜垫圈φ10 Gasket  φ10 1 $0.12
16 250T-A-07016 齿轮室进油法兰螺栓M10X12 Flange Bolt M10X12 1 $0.05
17 250T-A-07017 定位销φ10Xφ8X16 Pin, Dowel φ108X16 2 $0.05
18 250T-A-07018 齿轮室纸垫 Paper Gasket, Gear Box 1 $0.75
19 250T-A-07019 齿轮室盖油封22X35X100 Oil Seal, Gear Box Cap, 22X35X100 1 $0.90
20 250T-A-07020 通气管 Breather Tube 1 $0.60
21 250T-A-07021 法兰螺栓M6X70 Flange Bolt, M6X70 3 $0.11
22 250T-A-07022 法兰螺栓M6X60 Flange Bolt, M6X60 5 $0.09
23 250T-A-07023 法兰螺栓M8X38 Flange Bolt,M8X38 3 $0.12
24 250T-A-07024 法兰螺栓M8X28 Flange Bolt, M8X28 2 $0.09
25 250T-A-07025 左曲轴箱体油封28X40X8 Oil Seal, L. Crankcase, 28X40X8 1 $0.90
26 250T-A-07026 齿轮室放油法兰螺栓M6X30 Flange Bolt M6X30 1 $0.05
27 250T-A-07027 铜垫圈φ6 Gasket  φ6 1 $0.12
28 250T-A-07028 法兰螺栓M6X125 Flange Bolt M6X125 1 $0.23
29 250T-A-07029 石棉 Asbestus 1 $1.31
