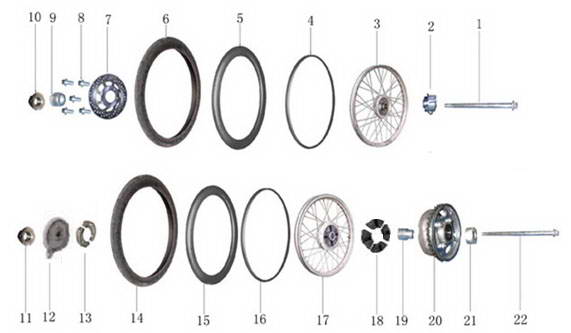

HOME --> MOTORCYCLE PARTS --> MI110-2 --> 10.FRONT AND REAR WHEEL ASSY

No. PARTS CODE 零部件名称 DESCRIPTION QTY
1 54151-*242-0000 前轮轴 Axle, front wheel 1
2 54430-*242-0000 计速器 Counter 1
3 54200-*242-0000 前轮毂 Hub, front wheel 1
4 54281-*242-0000 前轮垫带 Flap, front wheel 1
5 54250-*242-0000 前轮内胎 Inner tube, front wheel 1
6 54260-*242-0000 前轮外胎 Shoe, front wheel 1
7 56711-*242-0000 前制动盘 Brake disc, H 1
8 GB/T16674-1996 螺栓M6 X 20 Bolt M6 X 20 5
9 54152-*242-0000 前轮轴右衬套 Inner bush 1
10 GB/T6187.1-2000 螺母M12 Nut M12 1
11 GB/T6187.1-2000 螺母M12 Nut M12 1
12 65110-*242-0000 后制动器 Rear arrester 1
13 65111-*242-0000 后制动器片 Rear arrester piece 2
14 64260-*242-0000 后轮外胎 Shoe, rear wheel 1
15 64250-*242-0000 后轮内胎 Inner tube, rear wheel 1
16 64281-*242-0000 后轮垫带 Flap, rear wheel 1
17 64121-*242-0000 后轮毂 Rear wheel hub 1
18 29531-*242-0000 后轮缓冲胶 Buffer slabs, rear wheel 4
19 64161-*242-0000 内衬套 Bush (inner), chain wheel hub 1
20 29521-*242-0000 链轮 R.chain wheel 1
21 64154-*242-0000 后轮轴左衬套 Left bush, rear wheel 1
22 61411-*242-0000 后轮轴  Axle, rear wheel 1
