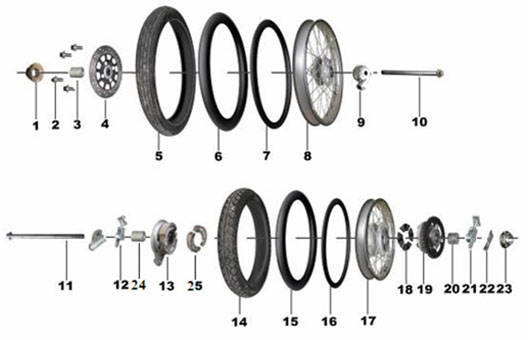

| No. | PARTS CODE | 零部件名称 | DESCRIPTION | QTY |
| 1 | GB/T6187.1-2000 | 螺母M12 | NUT M12 | 1 |
| 2 | GB/T16674-1996 | 螺栓M6 X 20 | BOLT M6 X 20 | 4 |
| 3 | 54153-251A-0000 | 前轮右衬套 | FRONT WHEEL BUSH, R | 2 |
| 4 | 56711-251A-0000 | 前制动盘 | FRONT BRAKE PLATE | 1 |
| 5 | 54260-251A-0000 | 前轮外胎 | SHOE, FRONT WHEEL | 1 |
| 6 | 54250-251A-0000 | 前轮内胎 | INNER TUBE, FRONT WHEEL | 1 |
| 7 | 54281-251A-0000 | 前轮垫带 | FLAP, FRONT WHEEL | 1 |
| 8 | 54211-251A-0000 | 前轮辋 | FRONT WHEEL RIM | 1 |
| 9 | 54152-251A-0000 | 计速器 | SPEED COUNTER | 1 |
| 10 | 54151-251A-0000 | 前轮轴 | AXLE. FRONT WHEEL | 1 |
| 11 | 64151-251A-0000 | 后轮轴 | REAR AXLE | 1 |
| 12 | 61411-251A-0000 | 右链条调节器 | CHAIN BAR ADJUSTER, R | 1 |
| 13 | 65300-251A-0000 | 后制动器 | REAR ARRESTER | 1 |
| 14 | 64260-251A-0000 | 后轮外胎 | SHOE, REAR WHEEL | 1 |
| 15 | 64250-251A-0000 | 后轮内胎 | INNER TUBE, REAR WHEEL | 1 |
| 16 | 64281-251A-0000 | 后轮垫带 | FLAP, REAR WHEEL | 1 |
| 17 | 64111-251A-0000 | 后轮毂 | REAR WHEEL HUB | 1 |
| 18 | 29522-251A-0000 | 缓冲体 | CUSHION BODY | 1 |
| 19 | 29510-251A-0000 | 链轮毂组合 | ASSY, CHAIN WHEEL HUB | 1 |
| 20 | 64154-251A-0000 | 后轮左衬套 | LEFT BUSH, REAR WHEEL | 1 |
| 21 | 61421-251A-0000 | 左链条调节器 | CHAIN BAR ADJUSTER, L | 1 |
| 22 | 61413-251A-0000 | 调节器挡块 | SIDE BAFFLE, CHAIN BAR ADJUSTER | 2 |
| 23 | GB/T6187.1-2000 | 螺母M12 | NUT M12 | 1 |
| 24 | 64153-251A-0000 | 后轮右衬套 | RIGHT BUSH, REAR WHEEL | 1 |
| 25 | 65320-251A-0000 | 后制动器蹄片 | REAR ARRESTER PIECE | 1 |
