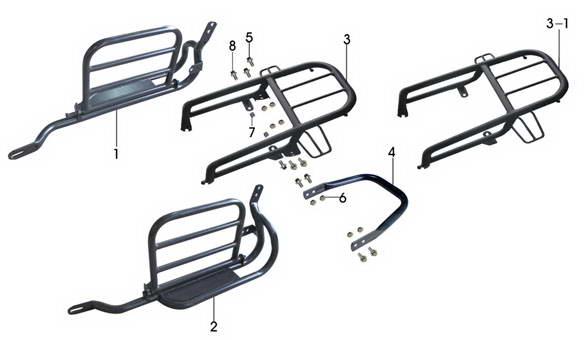

HOME --> MOTORCYCLE PARTS --> MI125-2E --> 11.BASKET

No. PARTS CODE 零部件名称 DESCRIPTION QTY
1 45441-353-0000 右踏板组合 Pedal assy, R 1
2 45451-353-0000 左踏板 Pedal, L 1
3 45410-353-0000 大后货架焊接组合 Rear goods basket jointing assy, big 1
4 45410-353A-0000 小后货架焊接组合(可选) Rear goods basket jointing assy, little 1
5 45413-353-0000 U形钢管 "U" steel tube 1
6 GB/T16674.1-2004 螺栓M8 X 25 Bolt M8 X 25 8
7 GB/T6170-2000 螺母M8 Nut M8 8
8 45437-353-0000 后货架前安装衬套 Top axle cover 2
9 GB/T16674.1-2004 螺栓M8 X 65 Bolt M8 X 65 2
